Isotrack X series

Isotrack X

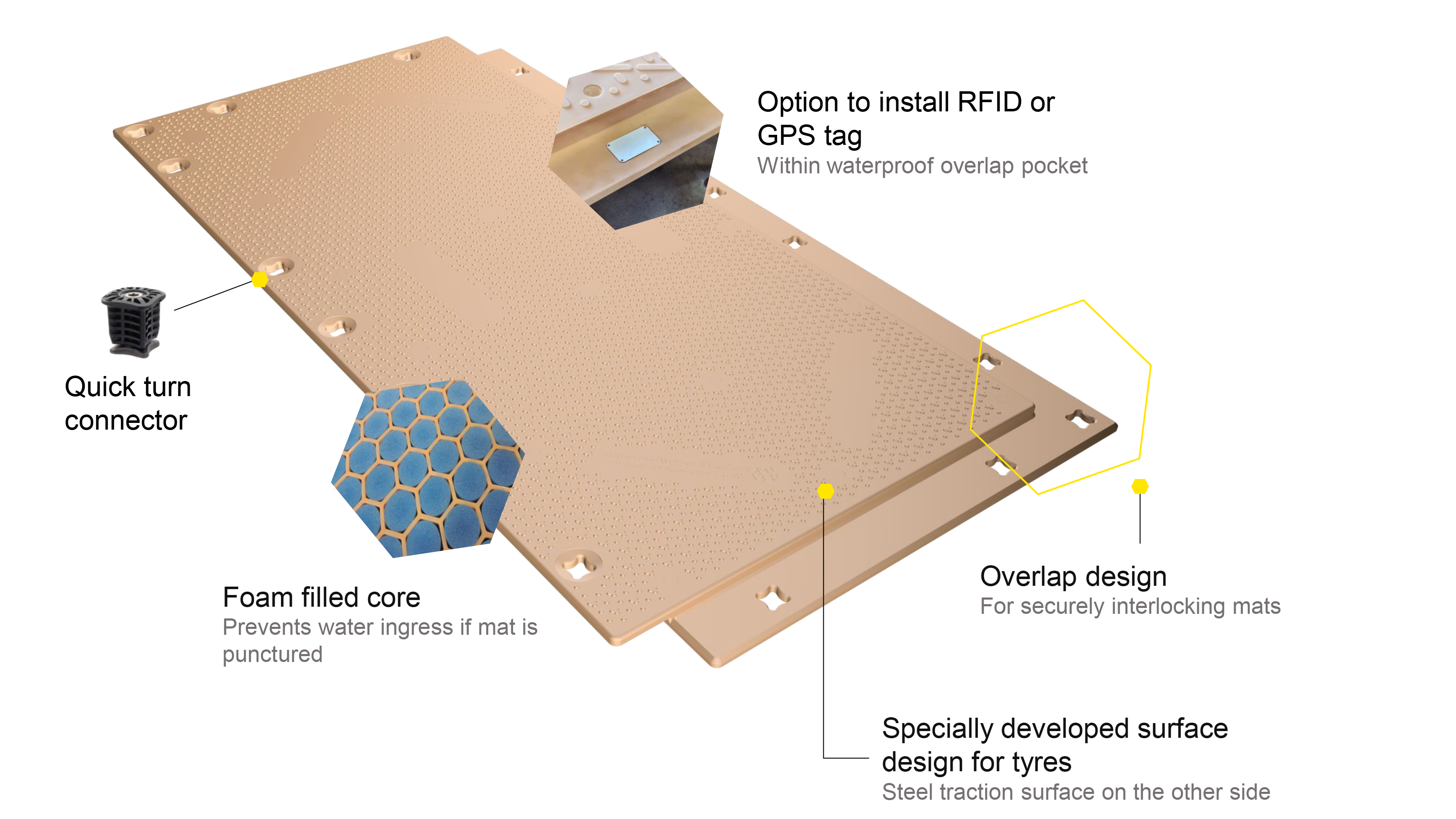

Isotrack X series advanced design provides temporary roads, work sites and staging areas where soft or boggy ground prevents safe access. Its cellular core can withstand high compressive loads (>605 psi) and the overlap and connection system creates a safe, continuous and stable work surface.

Overall dimensions4000 x 2000 mm
ThicknessTotal 102 mm, Core 94 mm
Usable Surface Area1,8 x 3,8 m = 6, 84 m2
Weight360 kg
Transport / ShippingStandard high cube 40ft container: 52 mats Mega truck EU: 60 mats
Compressive load capacity: 605 psi*415 tonnes m2

Choose Isotrack X – The premium extreme heavy duty road mat

  • For safe temporary access, work sites and staging areas on a wide range of different ground conditions and soil types.
  • High performance over a wide temperature range (-40ᵒC to +60ᵒC) and operating conditions.
  • Prime material is chemically inert and will not rot
  • Foam fill virtually eliminates ingress of liquids in the unlikely event that the mat gets punctured during use.
  • Each mat has unique identity number.
  • Option to install RFID or GPS within special pocket located in one of the laps.
  • Robust, durable, high-performance mat.
  • Long life and recyclable at end of life.

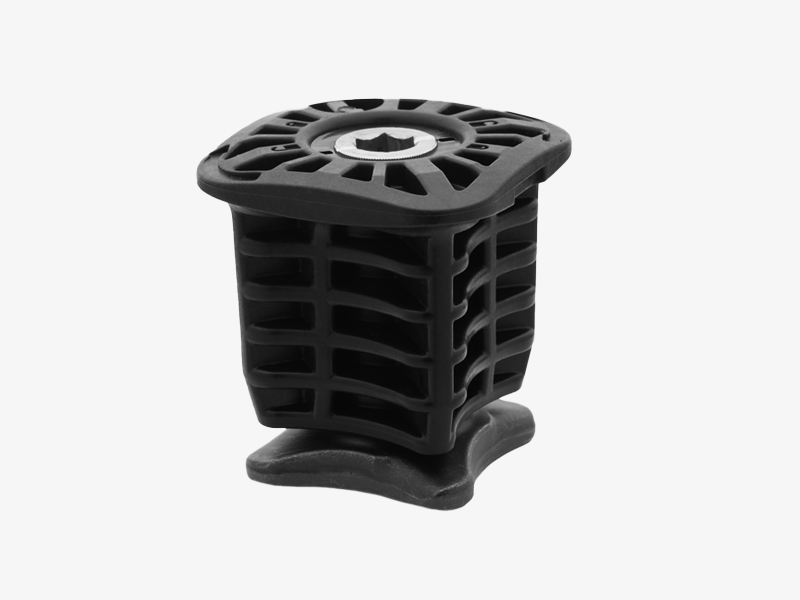

Four3 Connector

Installation Connection / Alignment Tool

Isotrack X Corner Piece 15 °

Ramp

Ramp Connection Piece

Mud Cap

RFID or GPS

Calculate the number of mats you need

Use the calculator to get an estimate of needed mats for your project.
The calculation is informative. For a detailed offer contact our representatives.



OR


Mats required

RoadPad
Isotrack X
Isotrack H
Isotrack L
T Mats

Case studies

Construction Temporary Road for Pipeline Reconstruction

Installation of temporary roadway / work surface using Isotrack X mats along the pipeline route.

Trial in desert

Isotrack X mats could be installed to provide stable temporary access roads for heavy vehicles without the need for sand compaction and traditional road build using crushed stone.

All cases by industry
