Isotrack M
Whilst Isotrack M is light enough to be handled and installed on the ground using two persons, it can provide temporary trackway and work areas for many medium to heavy duty applications. The overlaps and M12 bolt connection system ensures a safe, continuous and stable work surface.
Product variatons
| Overall Dimensions | 1906 x 1000 mm |
| Thickness | Total 33 mm, Core 25 mm |
| Usable Surface Area | 1,8 x 0,9 m = 1,63 m² |
| Weight | 43 ± 1 kg |
| Transport / Shipping | Open top standard high cube 40’ container 440 mats, Truck standard EU 540 mats |
| Load Bearing Capacity | Ideal for supporting vehicles and equipment up to more than 130 tonnes* |
* Load capacity is dependent on ground conditions

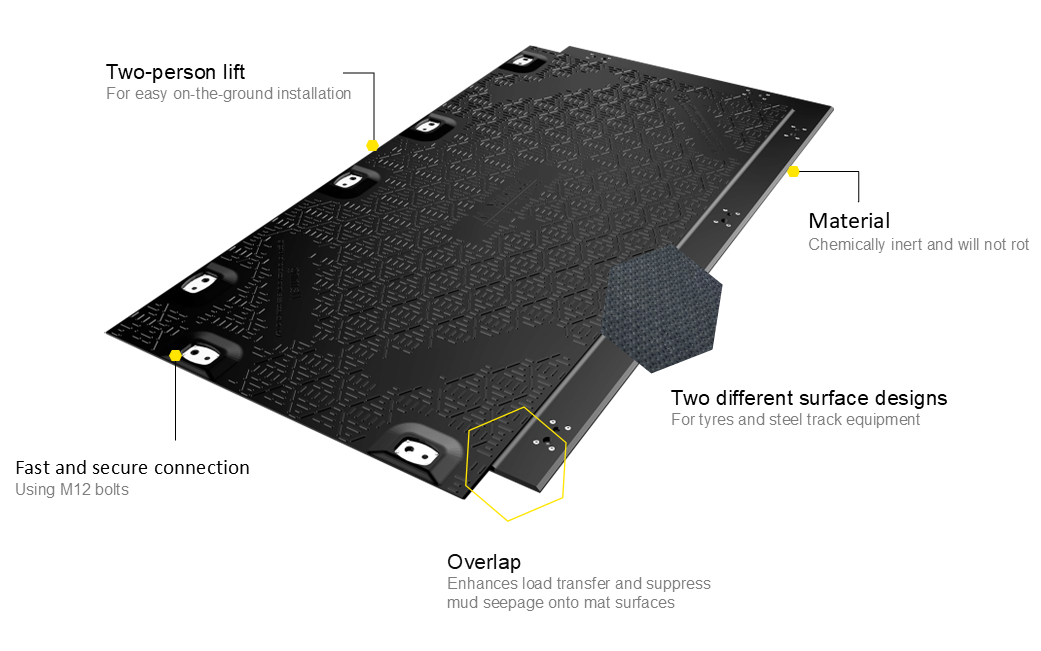

The Premium Solid Heavy Duty Road Mat
- Two-person lift for easy on-the-ground installation.
- Ideal for Medium-Heavy duty project applications.
- Can be used on soft to firm soil types to make temporary roadways and work pad areas for supporting a wide range of vehicles and equipment as well as site workers and pedestrians.
- Fast and secure connection using M12 bolts.
- Overlaps enhance load transfer and suppress mud seepage onto mat surfaces.
- Two different surface nub traction designs – for tyres and steel track equipment.
- Can be connected in different configurations to make roadways, pads, turning areas or passing places.
- Material is chemically inert and will not rot.
- Durable, long-life mat that is fully recyclable at end of life.
Calculate the Number of Mats You Need
Use the calculator to get an estimate of needed mats for your project.
The calculation is informative. For a detailed offer contact our representatives.
Case studies
Transport of harvested timber
Road mats were used on temporary unpaved forest roads. Road mats were laid on the ground (peat) without preparation and backfilling with sand.
Transport of harvested timber
Road mats were used on temporary unpaved forest roads. Road mats were laid on the ground (peat) without preparation and backfilling with sand.
Frequently Asked Questions
Yes, because each mat weighs 300kg. It can be lifted and installed using different types of equipment including hooks and chains, lifting straps, tele-handlers, forklifts, or vacuum lift. Equipment must be rated and certified for the loads being handled.
The mats are made from durable plastic materials and will provide many years of service on a wide range of projects. Some Isotrack H customers are still using mats that are more than 12-years old.
It is recommended that when installed, Isotrack H mats are connected to prevent separation during use and to provide a safe working surface for personnel and vehicles. Isotrack H uses steel connection straps that are secured using M16 bolts.
This depends on the weight of the vehicle (contact pressure) and the bearing capacity of the underlying ground. Being of solid construction, Isotrack H mats will flex to the ground contours. They are designed for heavy duty applications using vehicles and equipment such as mobile cranes, excavators, and tipper trucks.
