Isotrack H overlap

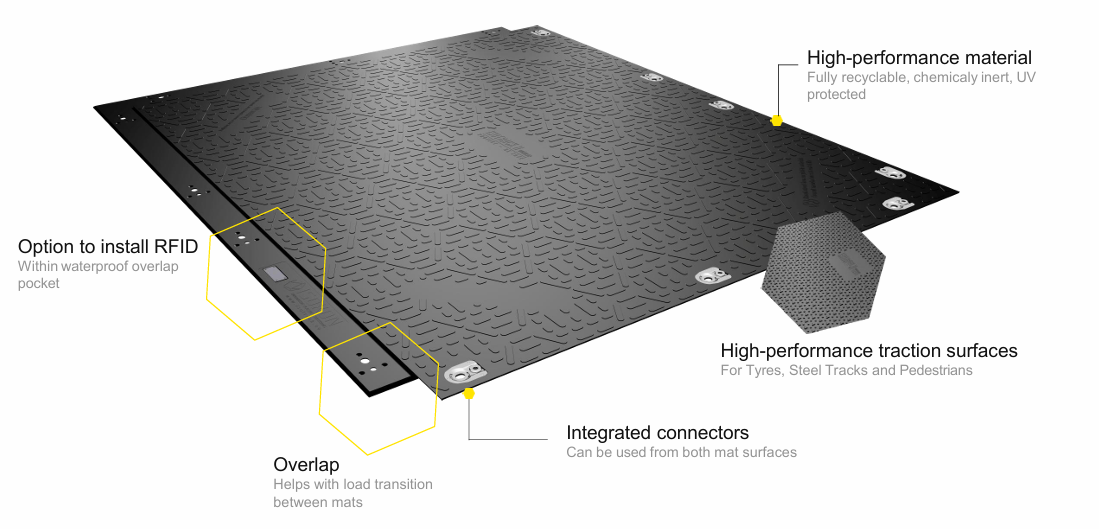

Isotrack H overlap is engineered for heavy-duty applications. Its integrated overlap system ensures effective load distribution across mats, minimizing deflection under pressure. With orthogonal assembly, mats are installed quickly with exchangeable nut connectors using standard M16 bolts and require no ground preparation.
Product variatons
| Overall Dimensions | 3000 x 2500 mm |
| Thickness | Total 46 mm, Core 38 mm |
| Usable Surface Area | 2.35 x 2.85 m = 6.7 m² |
| Weight | 265 kg |
| Transport / Shipping | Open top standard high cube 40’ container 66 mats, Truck standard EU 84 mats |
| Load Bearing Capacity | Ideal for supporting vehicles and equipment up to more than 150 tonnes* |
* Load capacity is dependent on ground conditions.
The Premium Solid Heavy Duty Road Mat with Overlap
- One piece compression-moulded, high-performance recycled thermoplastic material resistant to chemicals and oil and is UV protected
- Can be used on a wide range of different ground conditions and soil types to prevent vehicles and site personnel getting bogged down.
- Safe movement and access for vehicles, equipment, and people.
- Prevent severe rutting and damage – avoid ground reinstatement cost.
- Mat’s gently flex with ground contour – no ground preparation required.
- Flexible but tough and durable mat for long life use.
- Cannot puncture and take on water or contaminants.
- Easy to clean after use.
- Low theft risk compared to aluminium and steel mats.
- Sustainable – made from material that is 100% recyclable at end of life
Calculate the Number of Mats You Need
Use the calculator to get an estimate of needed mats for your project.
The calculation is informative. For a detailed offer contact our representatives.
Case studies
Transport of harvested timber

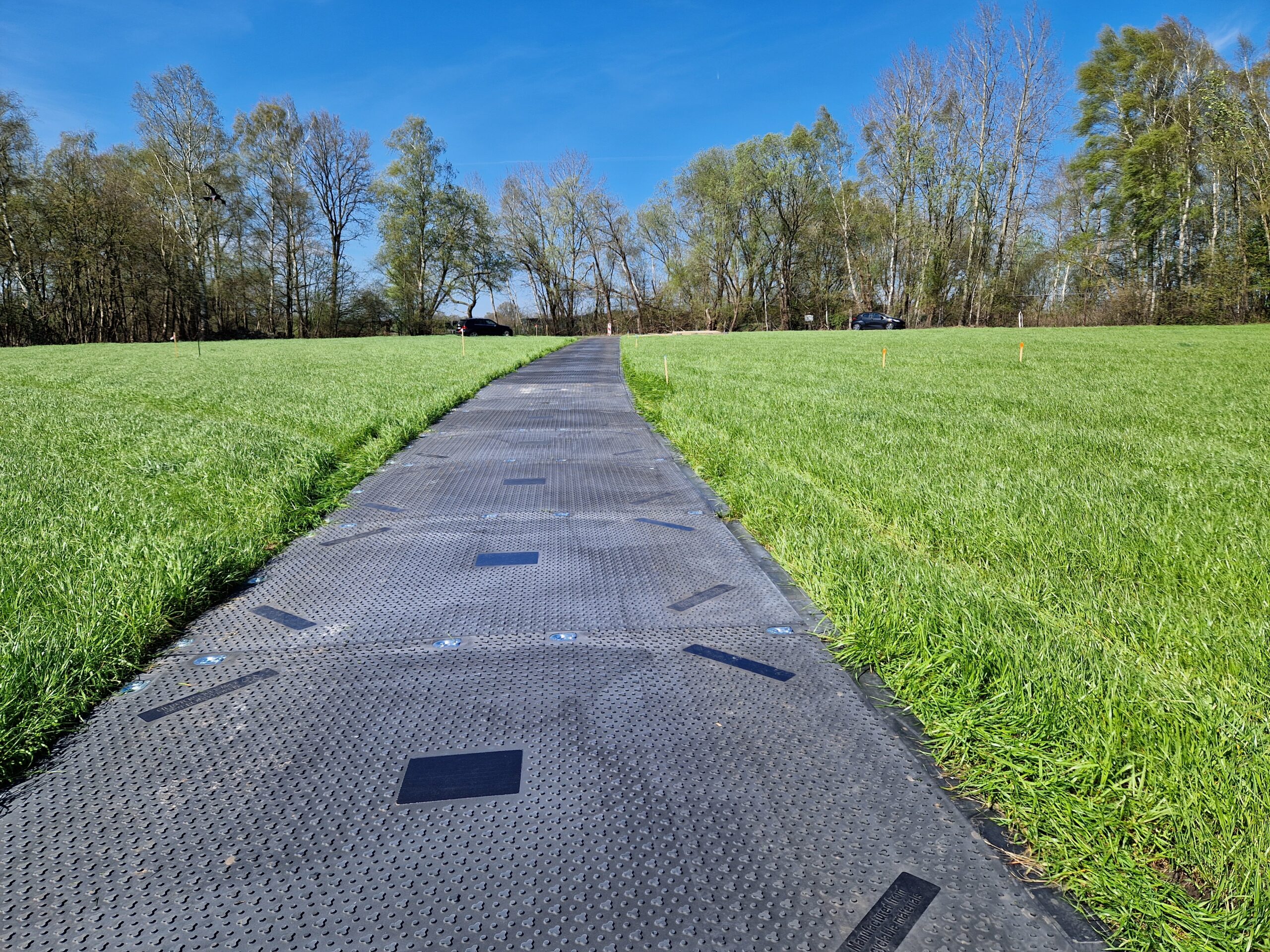

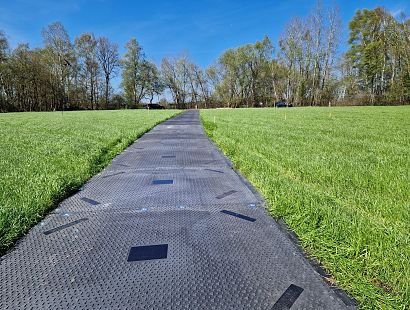

Road mats were used on temporary unpaved forest roads. Road mats were laid on the ground (peat) without preparation and backfilling with sand.
Transport of harvested timber
Road mats were used on temporary unpaved forest roads. Road mats were laid on the ground (peat) without preparation and backfilling with sand.
Frequently Asked Questions
Isotrack H-Overlap is a heavy-duty composite mat system designed to provide temporary access roads, working platforms and ground protection for heavy vehicles, equipment and personnel operating on soft or sensitive ground.
The system is suitable for:
- Construction and civil engineering
- Utilities
- Oil & gas
- Mining
- Transmission projects
- Drilling operations
- Events
- Temporary access roads
- Emergency access
- Landscaping
- Sports facilities
- Heritage and environmentally sensitive sites
- Any project requiring temporary heavy-duty access.
This depends on the weight of the vehicle (contact pressure) and the bearing capacity of the underlying ground. Being of solid construction, Isotrack H Overlap mats will flex to the ground contours. They are designed for heavy duty applications using vehicles and equipment such as mobile cranes, excavators, and tipper trucks.
Yes, because each mat weighs 265kg. It can be lifted and installed using different types of equipment including hooks and chains, lifting straps, tele-handlers, forklifts, or vacuum lift.
It is recommended that when installed, Isotrack H mats are connected to prevent separation during use and to provide a safe working surface for personnel and vehicles. Isotrack H uses steel connection straps that are secured using M16 bolts.
Yes. The mats are designed to distribute loads over weak or sensitive ground while providing safe access for vehicles and personnel. They also flex slightly to follow natural ground contours.
In most cases, no. The mats conform to minor ground irregularities, reducing or eliminating the need for ground preparation. However, they are not designed to bridge ditches, trenches or unsupported voids, so some grading or infilling may be required where these exist.
Yes. The patented exchangeable nut connector can be replaced if damaged, helping extend the service life of the mat.
The mats are made from durable plastic materials and will provide many years of service on a wide range of projects. Some Isotrack H customers are still using mats that are more than 12-years old.
